Evolution Aqua Pond Filter EazyPod AUTOMATIC UV COMPLETE Ponds Up To 10000L

Evolution Aqua Pond Filter EazyPod AUTOMATIC UV Ponds up to 10000L

EAZYPOD AUTOMATIC UV – The automatic choice for your pond

Award winning UK aquatics manufacturer Evolution Aqua have launched the new EazyPod Automatic UV pond filter.

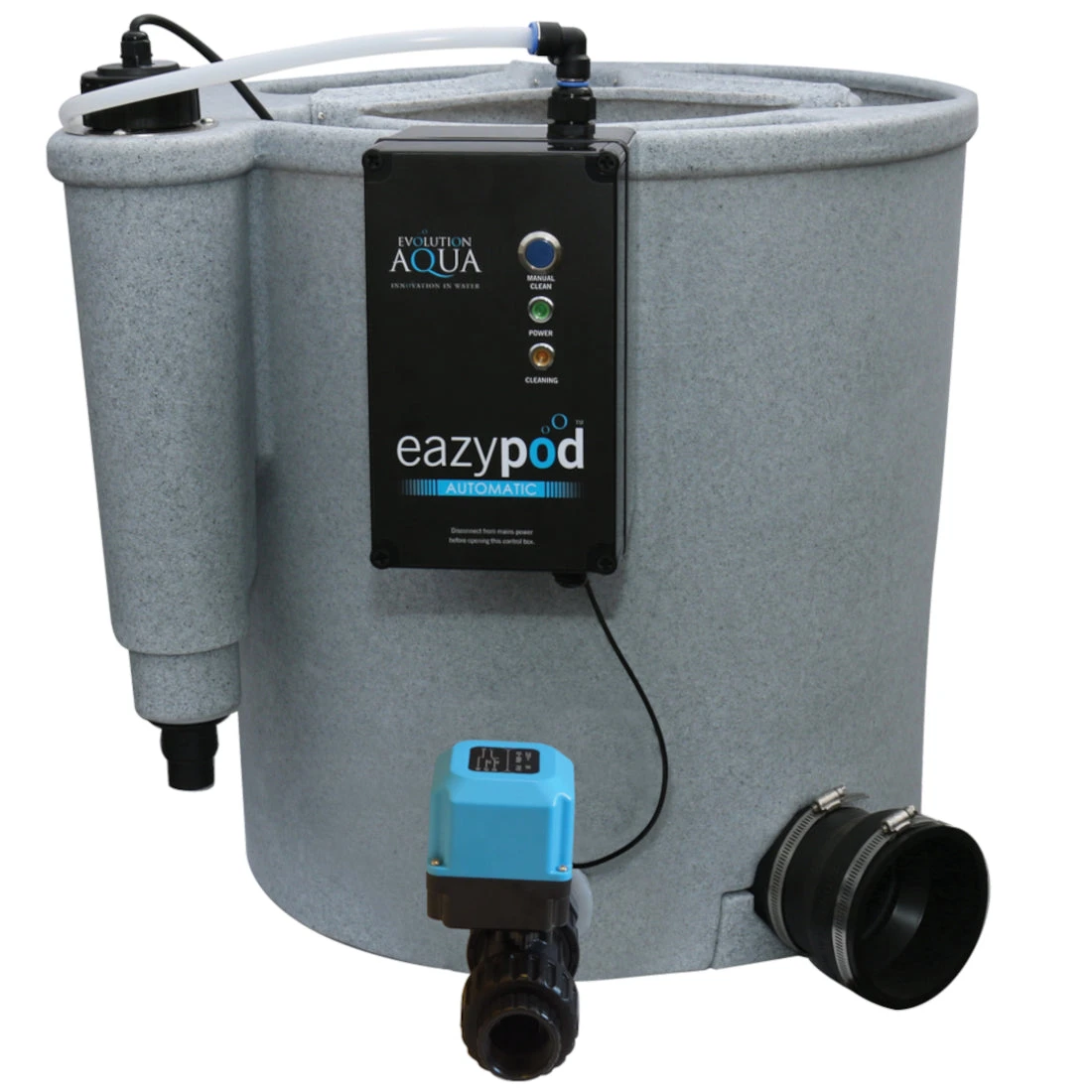

The EazyPod Automatic is a self-cleaning, mechanical and biological filter system for garden ponds up to 10,000 litres.

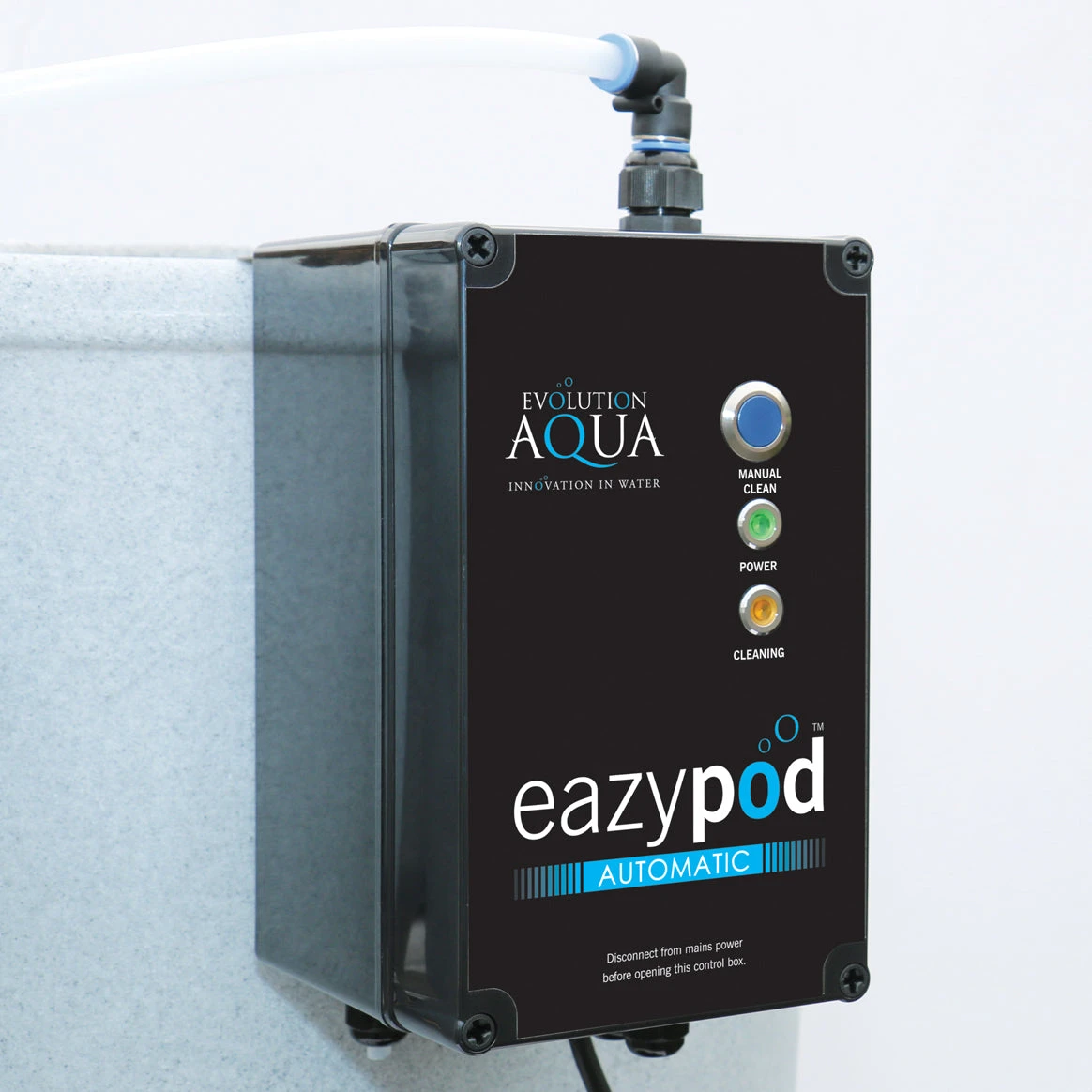

The integrated control box contains an adjustable timer which initiates a cleaning cycle automatically – even when you’re not there!

Inside the control box, the electronic connector blocks control the automated waste valve, along with your choice of circulating pump (not supplied). It even houses an integral air pump which kicks in automatically to clean the K1 Micro media.

Crystal clear, healthy water is achieved by K1 Micro filter media, which also provides enhanced biological benefits by way of its protected surface area.

The EazyPod UV Automatic features an integrated 18 Watt UVC built in to the inlet section of the filter, helping to clear green water.

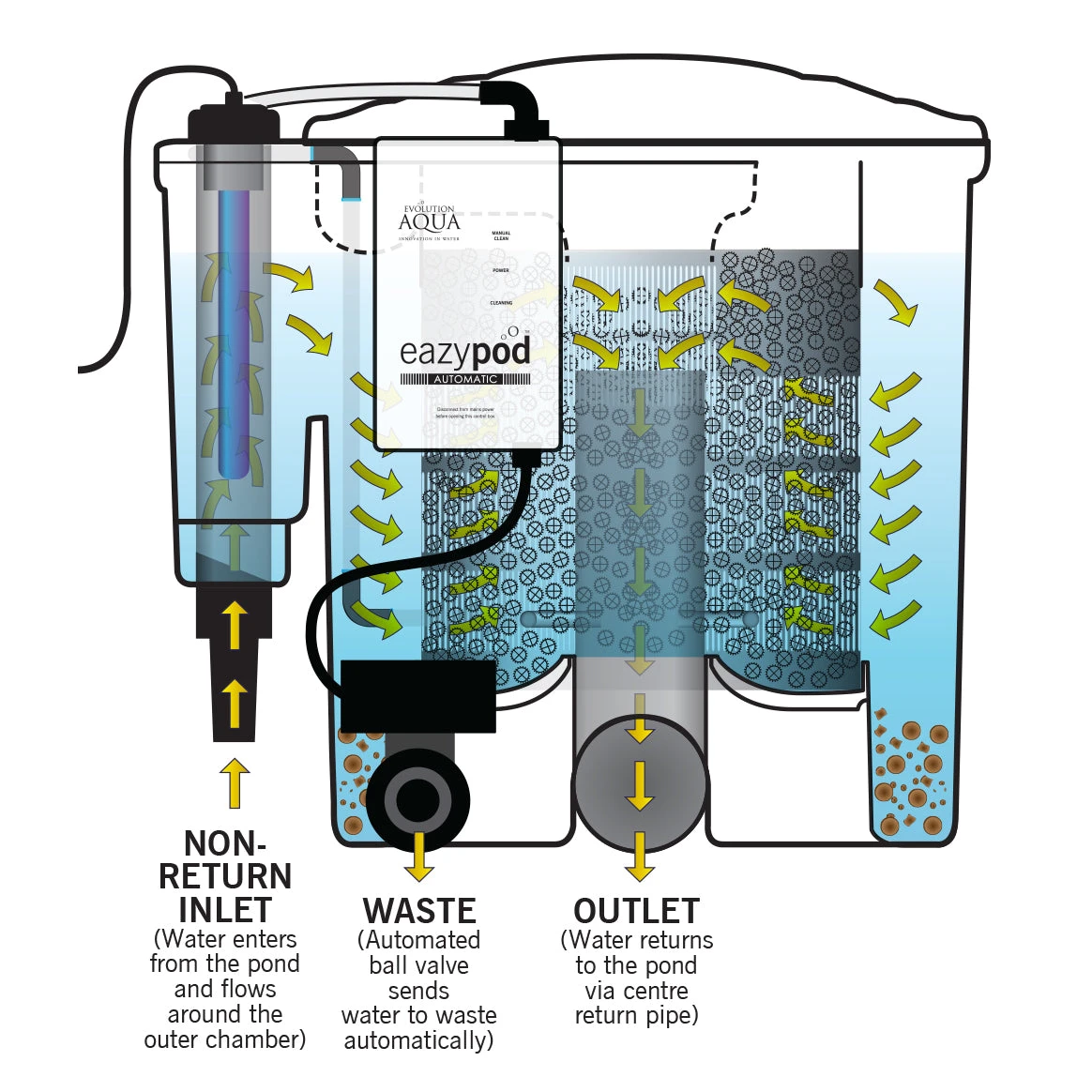

HOW THE EAZYPOD WORKS

The concept of the EazyPod Automatic is simple and yet innovative. Water enters via the inlet and passes over an 18 watt UV Clarifying bulb, helping to kill any single celled algae in the water.

The water then enters the outer chamber, which runs around the entire circumference of the EazyPod. Between the outer chamber and the inner chamber, there is a stainless steel perforated screen. These perforations are situated in the lower half of the screen and around its entire face. This means that when the water passes from the outer to inner chamber, a downward and upward flow is created. This causes many of the larger solids to settle in the base of the outer chamber, due to the force of gravity.

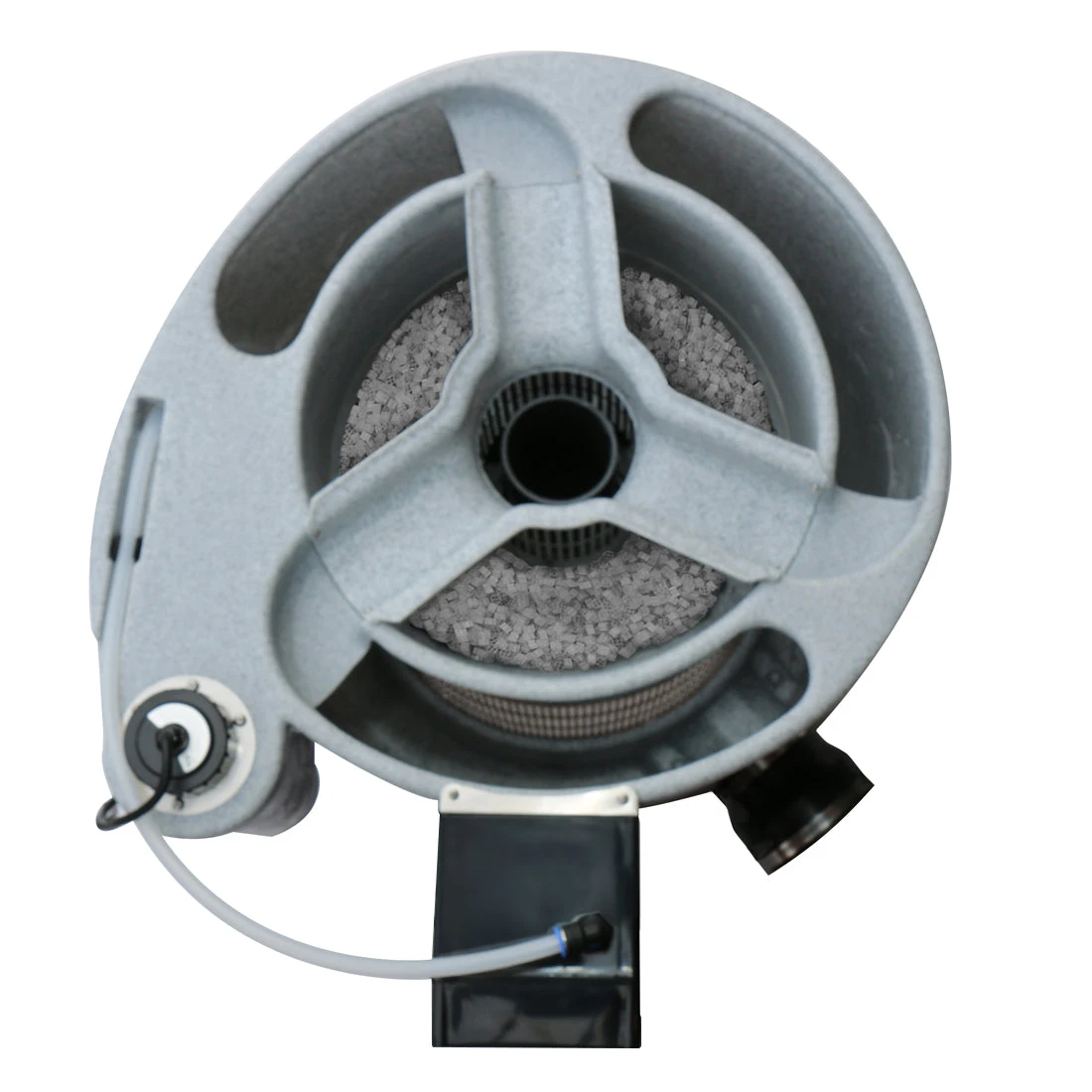

The size of the perforations will not allow large mechanical waste to enter the inner chamber, thus acting as a first stage mechanical filter. The inner chamber holds 18 litres of static K1 Micro media. As the water enters the inner chamber, the fine smaller solids become entrapped in the K1 Micro. After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe. From here it returns to the pond via the return outlet.

The EazyPod Automatic filtration system gives water quality and clarity that surpasses all expectations. The nature and volume of the K1 Micro means, that when static, apart from being a very efficient mechanical filter, there is more than enough surface area for beneficial bacteria to colonise. Therefore on a smaller pond, the EazyPod Automatic is an excellent complete filter.

AUTOMATIC CLEANING – Even when you’re not there

The K1 Micro is cleaned by the integrated air pump located inside the control box, that is connected to the air line in the EazyPod Automatic, which in turn goes to an air ring in the base of the inner chamber. The air ring has small holes in it which causes the K1 Micro to move and therefore clean itself.

During the cleaning cycle, the finer particles escape into chamber from the K1 Micro. This waste water will be automatically dumped via a 1½ inch motorised ball valve.

Cleaning is fully automated on the EazyPod Automatic, and is controlled by a built-in timer, which is factory set at one clean every 3 days, however, this is easily adjustable to fit in with your pond requirements.

The EazyPod Automatic will run a cleaning cycle which lasts approximately 6 and a half minutes.

EazyPod Automatic cleaning cycle:

• Adjustable timer kicks in to start a cleaning cycle
• The amber light on the control box illuminates
• Control box automatically switches circulating pump off
• Air pump inside the control box is switched on to clean the K1 Micro media
• After the K1 Micro media has been cleaned, the automated waste valve opens
• The EazyPod Automatic is drained to waste
• The automated waste valve closes. (Both green and amber lights are illuminated)
• When the waste valve is fully closed, the air pump is switched off
• When only the green light is illuminated, the circulating pump switches back on
• EazyPod Automatic returns to filtration mode

*NOTE: If the circulation pump does not switch on, then the waste valve is not fully closed and you will see both the green and amber lights illuminated. This safety feature is built in to ensure that you cannot empty your pond.

Adjusting the Cleaning Cycle
If you do not want to have your EazyPod cleaned once every 3 days, as is factory set, you can alter the cleaning frequency to suit your needs. Simply turn SCREW A and SCREW B to point to the different digits using the sequences shown in the tables below:
Use a pozi-drive screwdriver to turn the screw head, so the arrow on the dial points to the appropriate digit.
SCREW A – This screw sets the time of the cycle. (Factory set pointing to 10 d)
SCREW B – This screw sets the frequency as a percentage of the time set above. (Factory set pointing to 30%)

INSTALLATION
Pump Fed Install Only

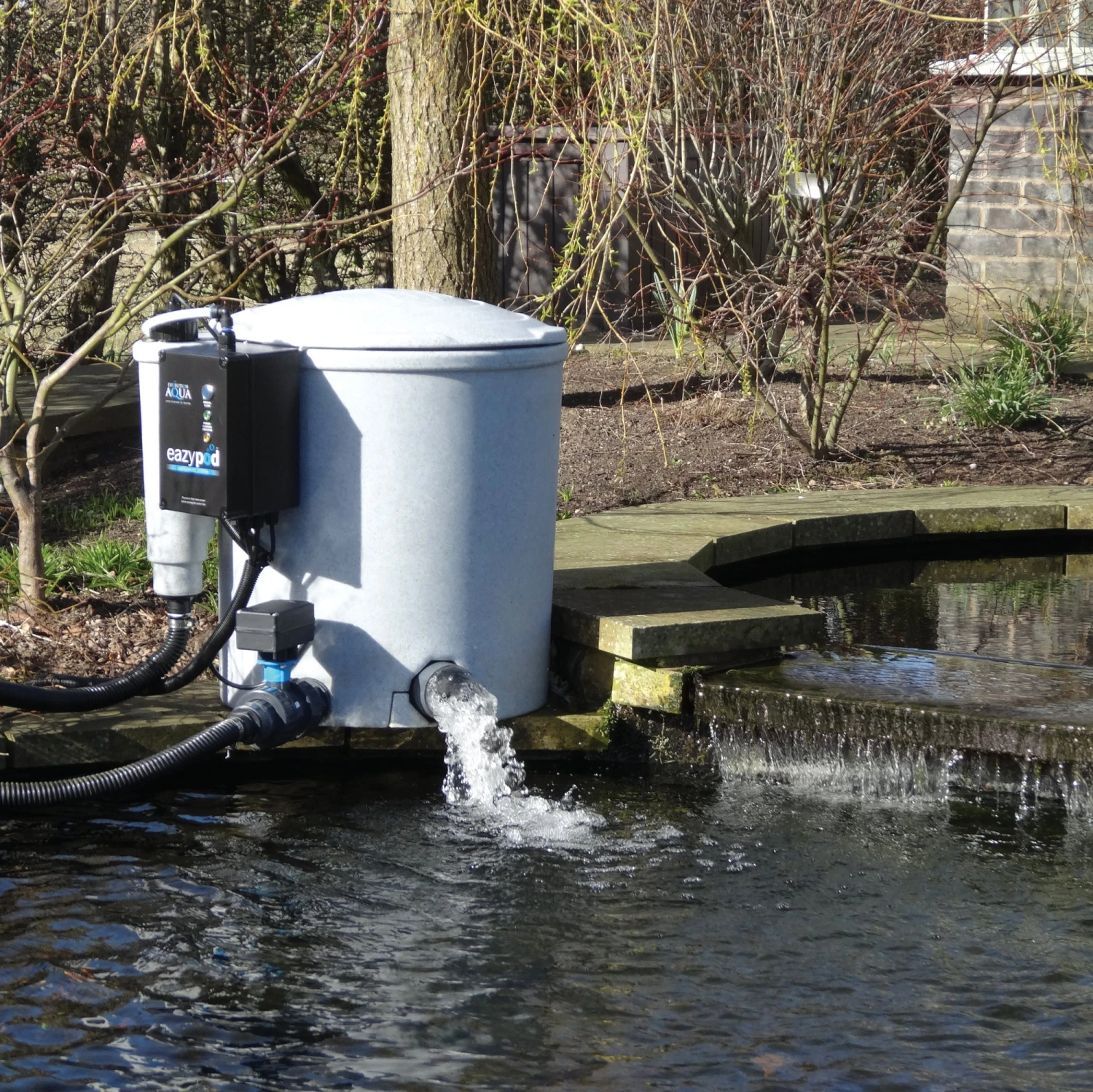

By this we mean that if your pump is going to be used to supply the water to the filter, and the filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large diameter pipe, this is referred to as PUMP FED (i.e. the water is fed to the filter using a pump).
