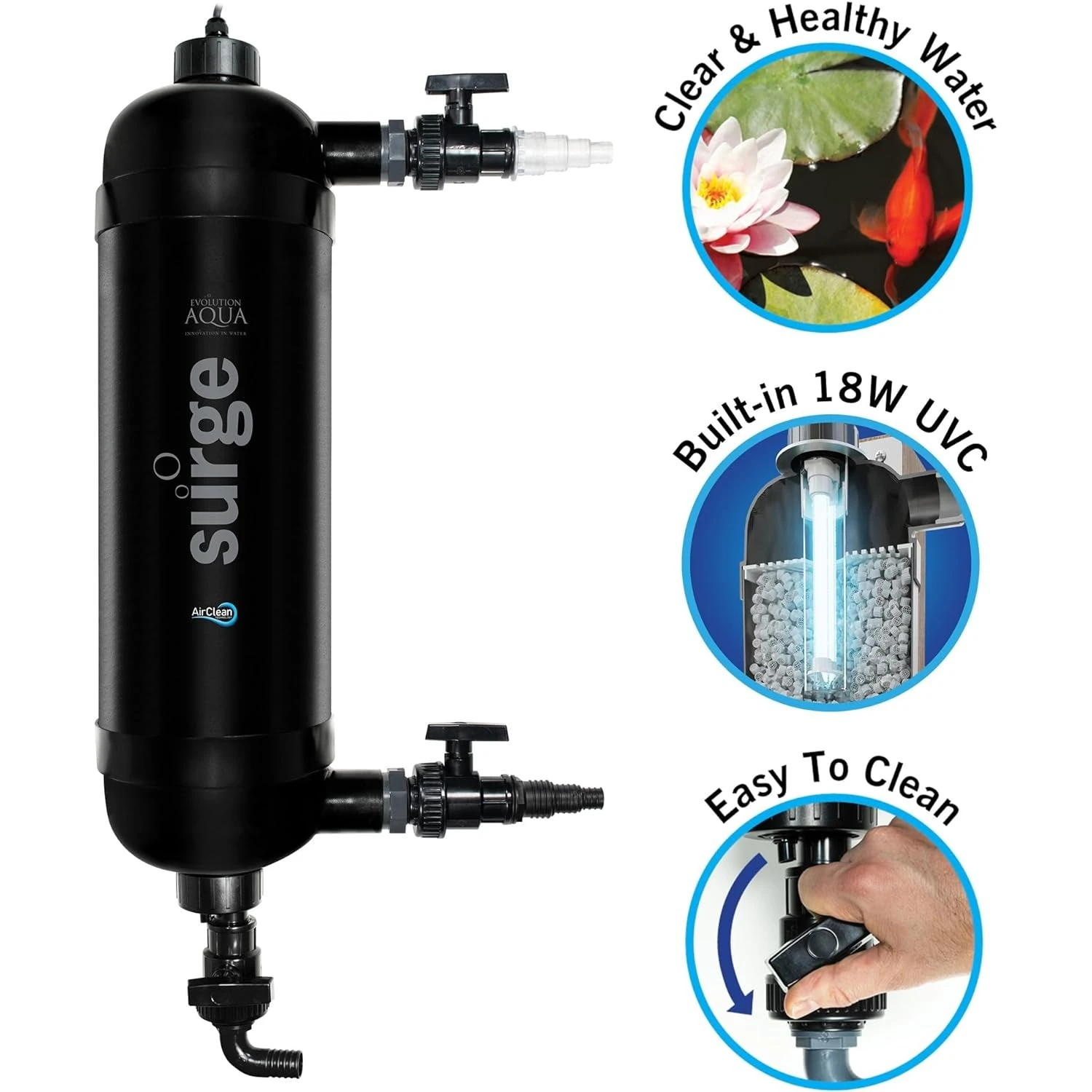

Evolution Aqua Pond Surge Filter With 18w UV Ponds Up To 5000L

Evolution Aqua Surge Filter with 18 watt UV

The Evolution Aqua Surge Filter is an innovative filter that will help to deliver crystal clear, healthy water for ponds up to 5,000 Litres. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond.

• Keep your hands dry – Foam free, easy self-cleaning technology

• More time to enjoy your pond – Reduces filter cleaning and maintenance

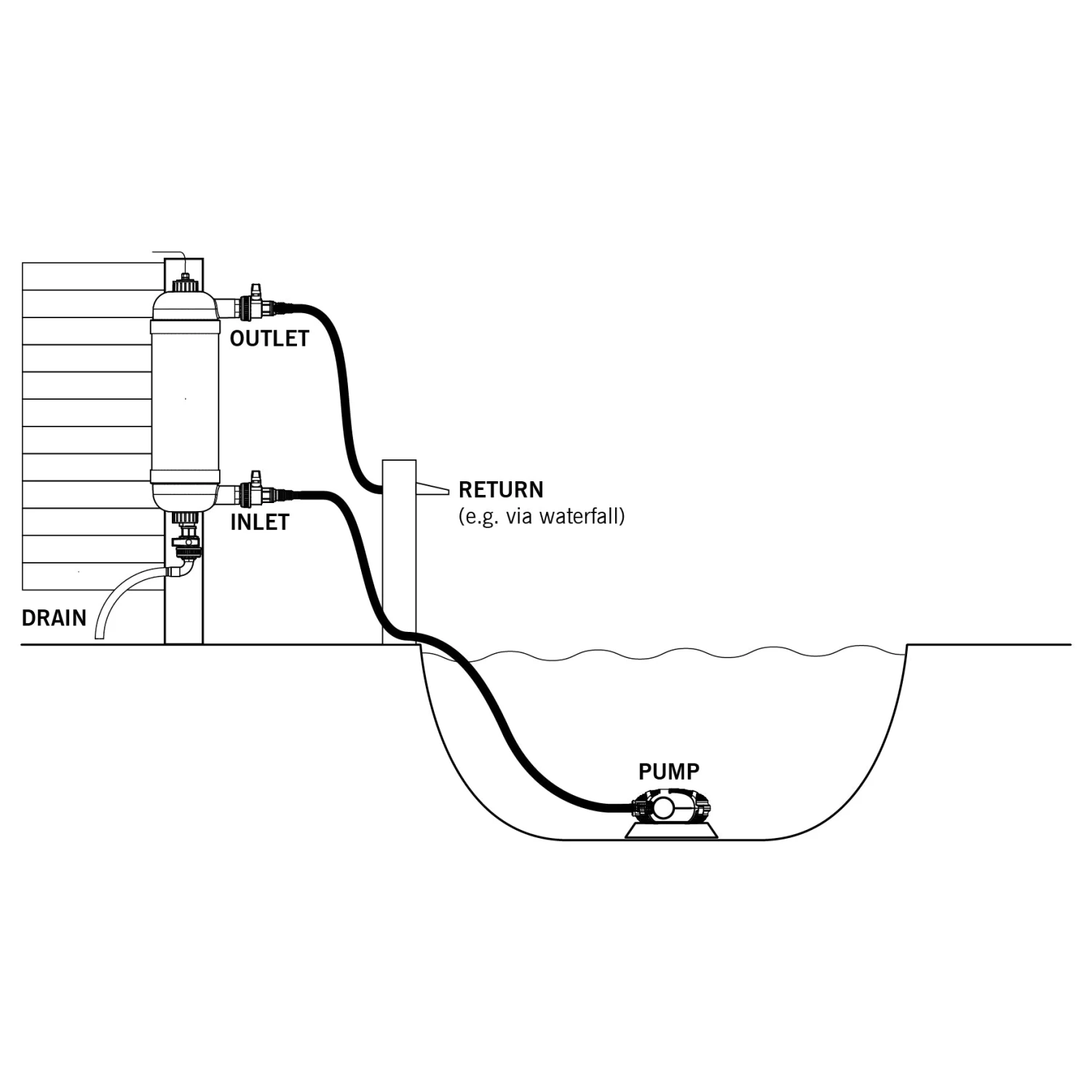

• Simple to install on a fence post or wall
• Effectively filters up to 5000 litres
• Crystal clear and healthy water – Enhanced filtration with K+Media and integrated UVC

Innovative Polisher For Ponds
Introducing the new Evolution Aqua Surge Filter with 18 watt UV. The Evolution Aqua Surge Filter with 18 watt UV is an innovative polishing system for ponds that will help to deliver crystal clear, healthy water. Designed to be used in conjunction with any filtration system or stand alone, the Evolution Aqua Surge Filter with 18 watt UV offers additional mechanical and biological filtration with 18 watt UV.

The Evolution Aqua Surge Filter with 18 watt UV can be used on quarantine systems or as a standalone filter on smaller ponds up to 5,000 Litres / 1,100 Gallons / 1,320 US Gallons.

Patent Pending Design
The Evolution Aqua Surge Filter with 18 watt UV is easy to install and is simple and quick to clean, by way of a unique, patent pending air syphon design. During the cleaning process, air is drawn into the filter as it empties which causes the water to agitate, effectively cleaning the K+Media.

Using Evolution Aqua’s K+Media as the filter media, particles down to one micron can be filtered. Not only that, K+Media is the result of extensive research and development, moulded with minerals for faster maturation times.

Independently Tested Filter Media
Evolution Aqua filter media has been independently tested by IFTS (Institut de la Filtration et des Techniques Séparatives).

IFTS International Filter Testing Services is the international reference for solid-liquid separation. Founded in 1981, IFTS is an independently regulated, ISO 17025 accredited, laboratory and research centre focusing on liquid filtration and separation science. IFTS quality management system is certified to ISO 9001:2015.

How The Evolution Aqua Surge Filter

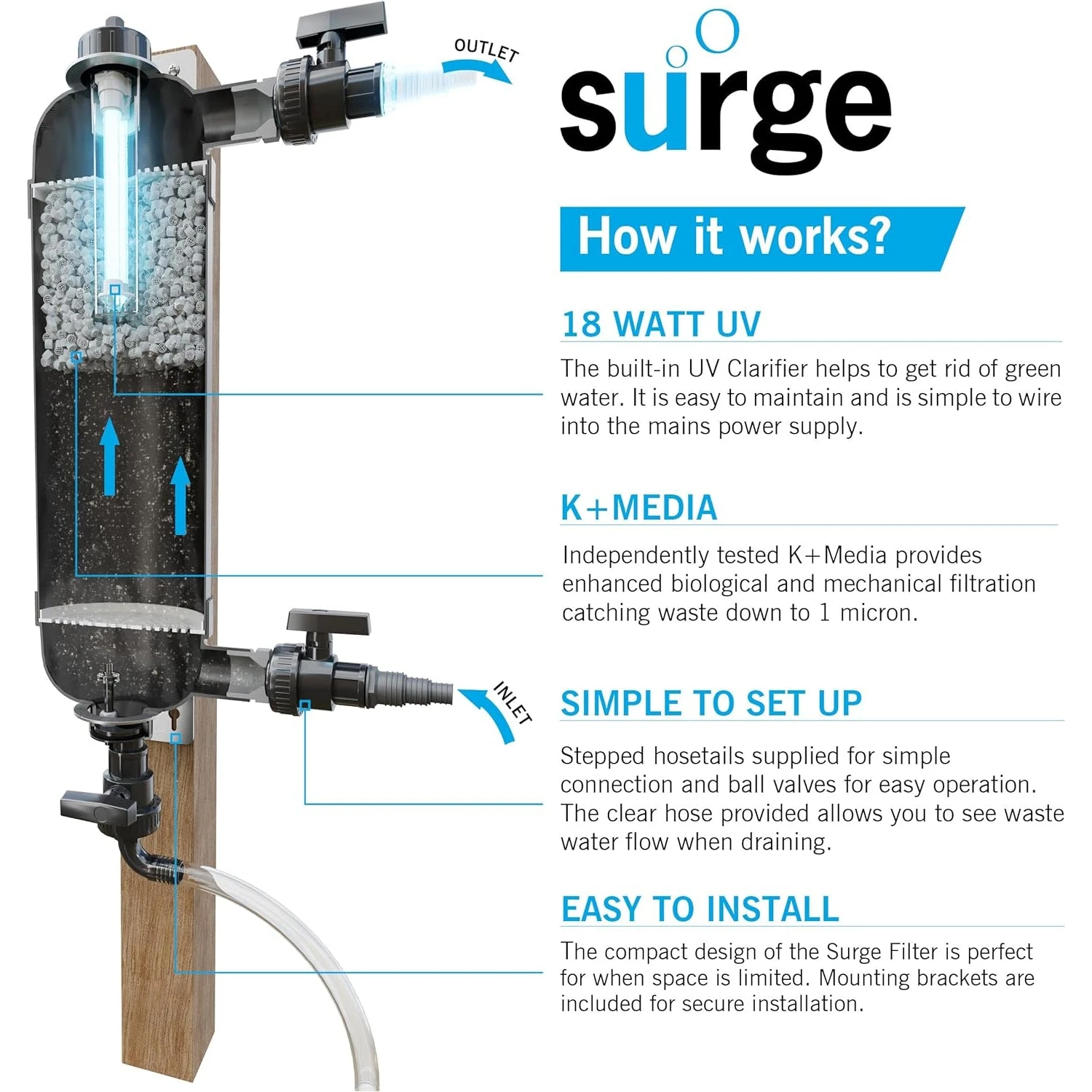

Water is pumped up through the Evolution Aqua Surge Filter with 18 watt UV. The K+Media moves to the top of the filter, becoming a mechanical barrier that traps debris as it flows through the system. Waste is trapped in the K+Media until the cleaning cycle dislodges it and it gets flushed away.

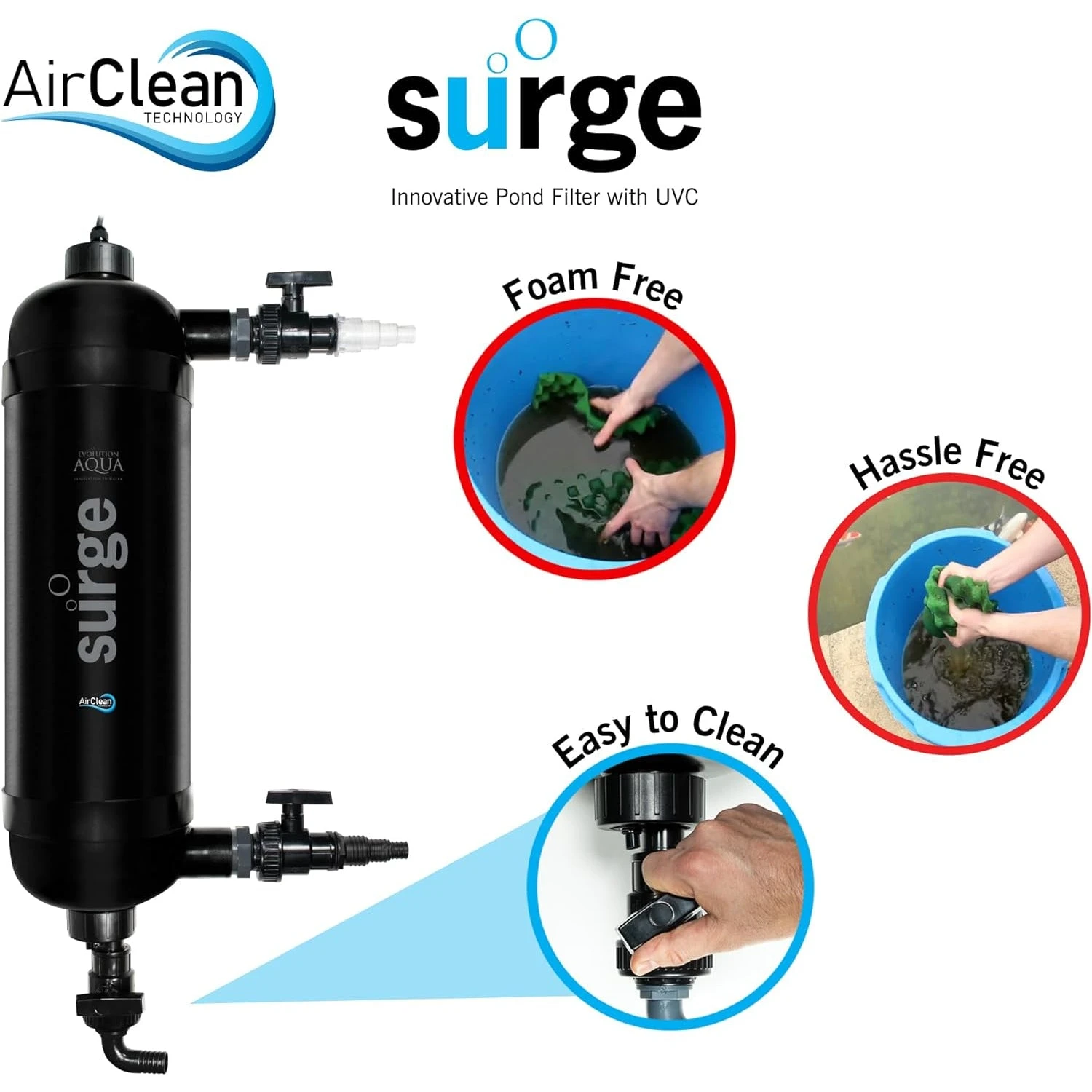

How To Clean The Evolution Aqua Surge Filter
The Evolution Aqua Surge Filter can be cleaned in matter of minutes, by simply turning the pump off, closing slide valves and opening the waste valve tap.

Specifications
Max pond size: 5000L
Inlet: ¾”, 1”, 1¼”
Outlet: ¾”, 1”, 1¼”
Waste: 1”
Max flow rate: 3500L/h
Optimum flow rate: 2500L/h
K+ media supplied: 4.5L
Filter water volume: 19L
